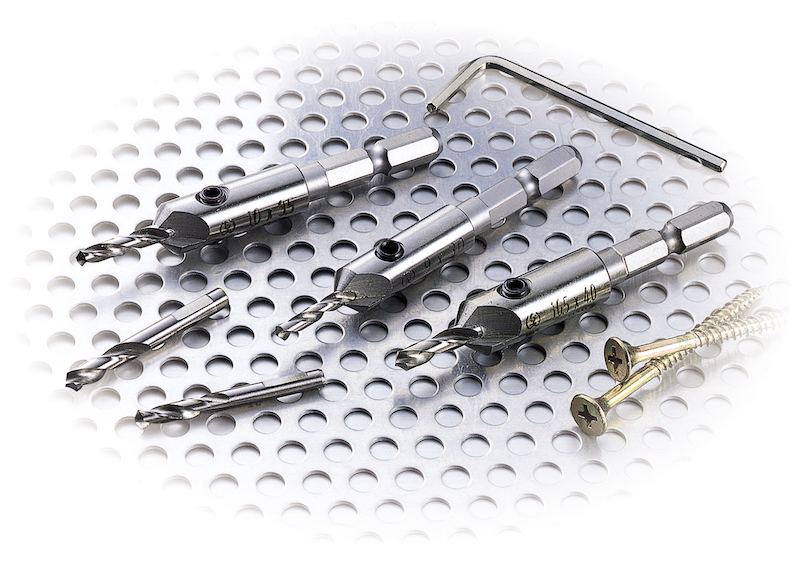

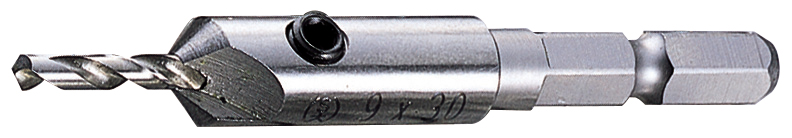

NO.23 Hex Shank Drill Cutter(L-30㎜)

product_images
product_images
product_images

Hover your mouse over the image to enlarge

product_small_images
product_small_images
product_small_images

USE

Drilling a prepared hole as well as chamfering on steel, wood and aluminium.

FEATURE

・Design hex shank for quick change of impact drill.
・Using high-speed steel for Long life with reduced drilling resistance.
・Design X style thinning at the tip for great chip discharge at the drill tip and prolong battery life.
・Due to designed combining inner drill and chamfering cutter, be able to do for drilling pre hole and 90-degree chamfering in one process.
・Replacement inner drill offered and rechanged by an L-style wrench simply.

SIZE

Part Number Size Inch Full Cutter diameter Drill diameter Drill length Chuck JAN Price Total
023L-090 9.0x3.0 - 93㎜ 9.0㎜ - - 6.35㎜ 4957934410305 3,250 3,575
023L-100 10.0x3.5 - 93㎜ 10.0㎜ - - 6.35㎜ 4957934410350 3,820 4,202
023L-105 10.5x4.0 - 93㎜ 10.5㎜ - - 6.35㎜ 4957934410404 3,940 4,334
  • 023L-090

    3,250(3,575)

    • Size:

      9.0x3.0

    • インチ:

      -

    • Full:

      93㎜

    • Cutter diameter:

      9.0㎜

    • 中drill径:

    • 中drill溝長:

    • Chuck:

      6.35㎜

    • JAN:

      4957934410305

  • 023L-100

    3,820(4,202)

    • Size:

      10.0x3.5

    • インチ:

      -

    • Full:

      93㎜

    • Cutter diameter:

      10.0㎜

    • 中drill径:

    • 中drill溝長:

    • Chuck:

      6.35㎜

    • JAN:

      4957934410350

  • 023L-105

    3,940(4,334)

    • Size:

      10.5x4.0

    • インチ:

      -

    • Full:

      93㎜

    • Cutter diameter:

      10.5㎜

    • 中drill径:

    • 中drill溝長:

    • Chuck:

      6.35㎜

    • JAN:

      4957934410404
