Product detail

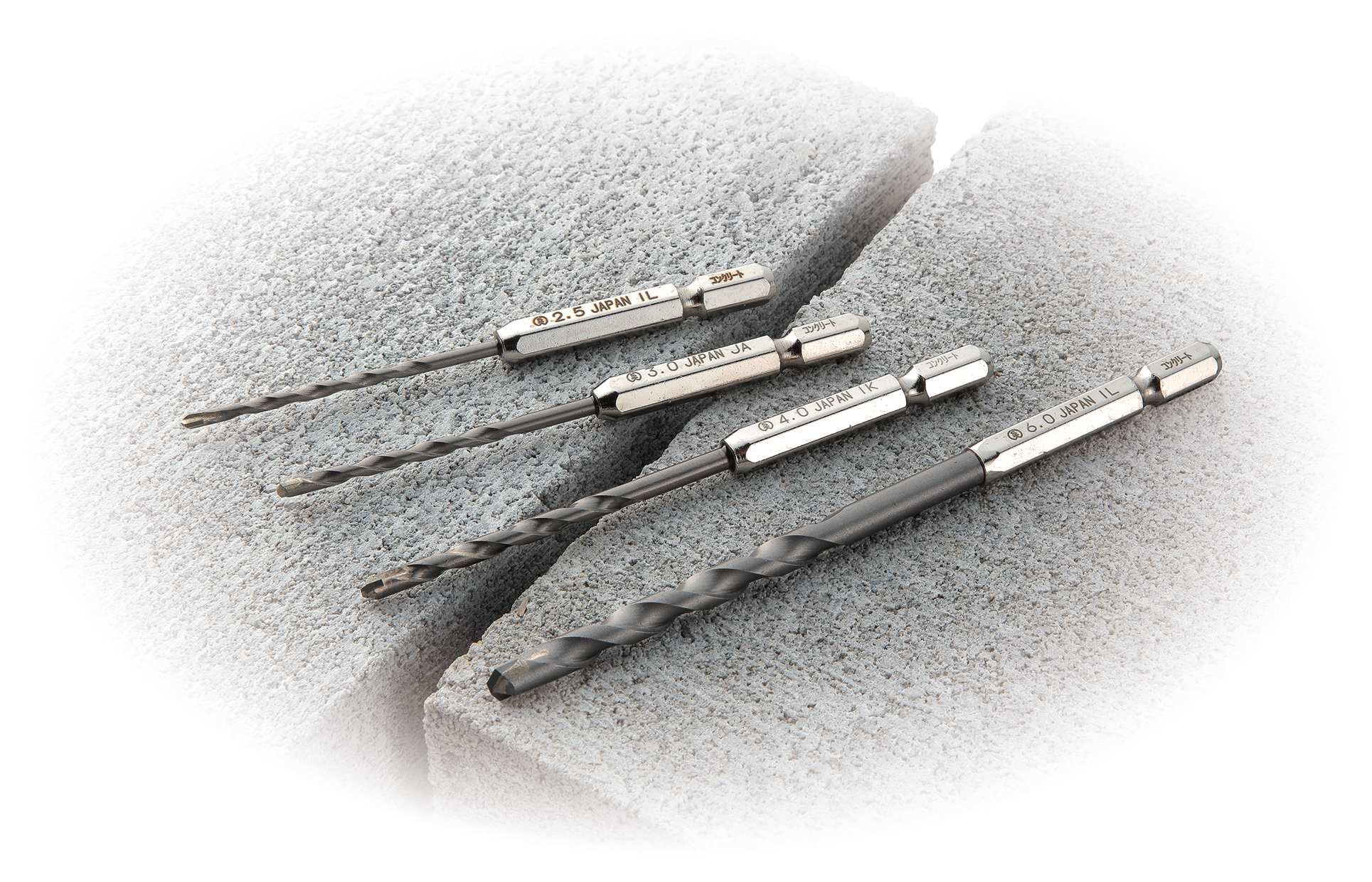

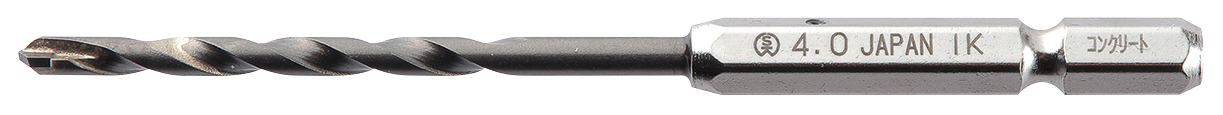

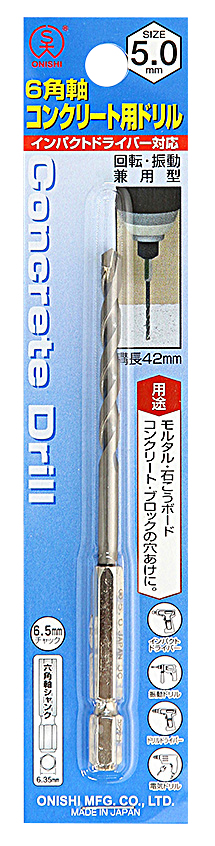

NO.24 Hex Shank Concrete Drill Bits

ページ内メニュー

product_images
product_images
product_images

Hover your mouse over the image to enlarge

product_small_images
product_small_images
product_small_images

USE

Drilling concrete, block, mortar, gypsum board.

FEATURE

・Design Hex shank for quick change of impact drill.
・Suitable in drilling a pre hole for a plug anchor or no plug screw.
・Design polished tip drill for improving cutting quality.
・the shank and drill body has adhered completely.　
・Inserted the pin to prevent rotation or slipping out.

SIZE

Part Number Size
(mm)		 Inch Actual
(mm)		 Full
(mm)		 Ditch
(mm)		 Chuck
(mm)		 JAN Price Total
024-025 2.5 - - 95 36 6.35 4957934220256 ￥1,190 ￥1,309
024-028 2.8 - - 95 36 6.35 4957934220287 ￥1,190 ￥1,309
024-030 3.0 - - 95 36 6.35 4957934220300 ￥1,110 ￥1,221
024-032 3.2 - - 95 36 6.35 4957934220324 ￥1,110 ￥1,221
024-034 3.4 - - 100 36 6.35 4957934220348 ￥1,110 ￥1,221
024-035 3.5 - - 100 36 6.35 4957934220355 ￥1,110 ￥1,221
024-038 3.8 - - 105 42 6.35 4957934220386 ￥1,110 ￥1,221
024-040 4.0 - - 105 42 6.35 4957934220409 ￥1,110 ￥1,221
024-043 4.3 - - 110 42 6.35 4957934220430 ￥1,110 ￥1,221
024-045 4.5 - - 110 42 6.35 4957934220454 ￥1,110 ￥1,221
024-048 4.8 - - 115 42 6.35 4957934220485 ￥1,150 ￥1,265
024-050 5.0 - - 115 42 6.35 4957934220508 ￥1,150 ￥1,265
024-053 5.3 - - 120 48 6.35 4957934220539 ￥1,150 ￥1,265
024-055 5.5 - - 120 48 6.35 4957934220553 ￥1,150 ￥1,265
024-060 6.0 - - 120 55 6.35 4957934220607 ￥1,240 ￥1,364
024-064 6.4 - - 125 55 6.35 4957934220645 ￥1,320 ￥1,452
024-065 6.5 - - 125 55 6.35 4957934220652 ￥1,320 ￥1,452

  • 024-025

    ￥1,190(￥1,309)

    • Size(mm):

      2.5

    • インチ(mm):

      -

    • Actual(mm):

      -

    • Full(mm):

      95

    • Ditch(mm):

      36

    • Chuck(mm):

      6.35

    • JAN:

      4957934220256

  • 024-028

    ￥1,190(￥1,309)

    • Size(mm):

      2.8

    • インチ(mm):

      -

    • Actual(mm):

      -

    • Full(mm):

      95

    • Ditch(mm):

      36

    • Chuck(mm):

      6.35

    • JAN:

      4957934220287

  • 024-030

    ￥1,110(￥1,221)

    • Size(mm):

      3.0

    • インチ(mm):

      -

    • Actual(mm):

      -

    • Full(mm):

      95

    • Ditch(mm):

      36

    • Chuck(mm):

      6.35

    • JAN:

      4957934220300

  • 024-032

    ￥1,110(￥1,221)

    • Size(mm):

      3.2

    • インチ(mm):

      -

    • Actual(mm):

      -

    • Full(mm):

      95

    • Ditch(mm):

      36

    • Chuck(mm):

      6.35

    • JAN:

      4957934220324

  • 024-034

    ￥1,110(￥1,221)

    • Size(mm):

      3.4

    • インチ(mm):

      -

    • Actual(mm):

      -

    • Full(mm):

      100

    • Ditch(mm):

      36

    • Chuck(mm):

      6.35

    • JAN:

      4957934220348

  • 024-035

    ￥1,110(￥1,221)

    • Size(mm):

      3.5

    • インチ(mm):

      -

    • Actual(mm):

      -

    • Full(mm):

      100

    • Ditch(mm):

      36

    • Chuck(mm):

      6.35

    • JAN:

      4957934220355

  • 024-038

    ￥1,110(￥1,221)

    • Size(mm):

      3.8

    • インチ(mm):

      -

    • Actual(mm):

      -

    • Full(mm):

      105

    • Ditch(mm):

      42

    • Chuck(mm):

      6.35

    • JAN:

      4957934220386

  • 024-040

    ￥1,110(￥1,221)

    • Size(mm):

      4.0

    • インチ(mm):

      -

    • Actual(mm):

      -

    • Full(mm):

      105

    • Ditch(mm):

      42

    • Chuck(mm):

      6.35

    • JAN:

      4957934220409

  • 024-043

    ￥1,110(￥1,221)

    • Size(mm):

      4.3

    • インチ(mm):

      -

    • Actual(mm):

      -

    • Full(mm):

      110

    • Ditch(mm):

      42

    • Chuck(mm):

      6.35

    • JAN:

      4957934220430

  • 024-045

    ￥1,110(￥1,221)

    • Size(mm):

      4.5

    • インチ(mm):

      -

    • Actual(mm):

      -

    • Full(mm):

      110

    • Ditch(mm):

      42

    • Chuck(mm):

      6.35

    • JAN:

      4957934220454

  • 024-048

    ￥1,150(￥1,265)

    • Size(mm):

      4.8

    • インチ(mm):

      -

    • Actual(mm):

      -

    • Full(mm):

      115

    • Ditch(mm):

      42

    • Chuck(mm):

      6.35

    • JAN:

      4957934220485

  • 024-050

    ￥1,150(￥1,265)

    • Size(mm):

      5.0

    • インチ(mm):

      -

    • Actual(mm):

      -

    • Full(mm):

      115

    • Ditch(mm):

      42

    • Chuck(mm):

      6.35

    • JAN:

      4957934220508

  • 024-053

    ￥1,150(￥1,265)

    • Size(mm):

      5.3

    • インチ(mm):

      -

    • Actual(mm):

      -

    • Full(mm):

      120

    • Ditch(mm):

      48

    • Chuck(mm):

      6.35

    • JAN:

      4957934220539

  • 024-055

    ￥1,150(￥1,265)

    • Size(mm):

      5.5

    • インチ(mm):

      -

    • Actual(mm):

      -

    • Full(mm):

      120

    • Ditch(mm):

      48

    • Chuck(mm):

      6.35

    • JAN:

      4957934220553

  • 024-060

    ￥1,240(￥1,364)

    • Size(mm):

      6.0

    • インチ(mm):

      -

    • Actual(mm):

      -

    • Full(mm):

      120

    • Ditch(mm):

      55

    • Chuck(mm):

      6.35

    • JAN:

      4957934220607

  • 024-064

    ￥1,320(￥1,452)

    • Size(mm):

      6.4

    • インチ(mm):

      -

    • Actual(mm):

      -

    • Full(mm):

      125

    • Ditch(mm):

      55

    • Chuck(mm):

      6.35

    • JAN:

      4957934220645

  • 024-065

    ￥1,320(￥1,452)

    • Size(mm):

      6.5

    • インチ(mm):

      -

    • Actual(mm):

      -

    • Full(mm):

      125

    • Ditch(mm):

      55

    • Chuck(mm):

      6.35

    • JAN:

      4957934220652

Buy Here

RELATED ITEM

Hex Shank Concrete Drill Bits 3pcs set

No.24 Hex Shank Concrete Drill Bits 3pcs set

Use

Drilling concrete, block, mortar, gypsum board.

Features

・Design Hex shank for quick change of impact drill.
・Suitable in drilling a prepared hole for a plug anchor or no plug screw.
・Design polished tip drill for improving cutting quality.
・Inserted the pin to prevent rotation or slipping out.

VIEW MORE

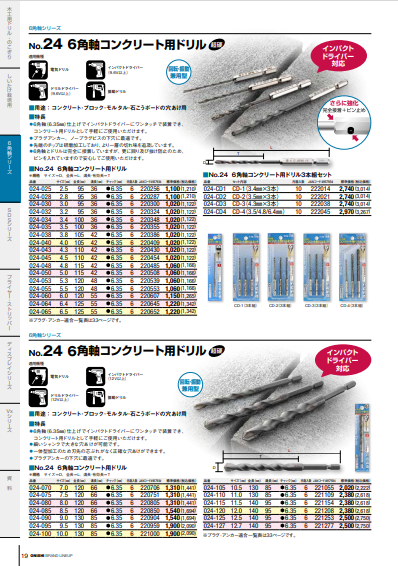

CATALOGUE
