Product detail

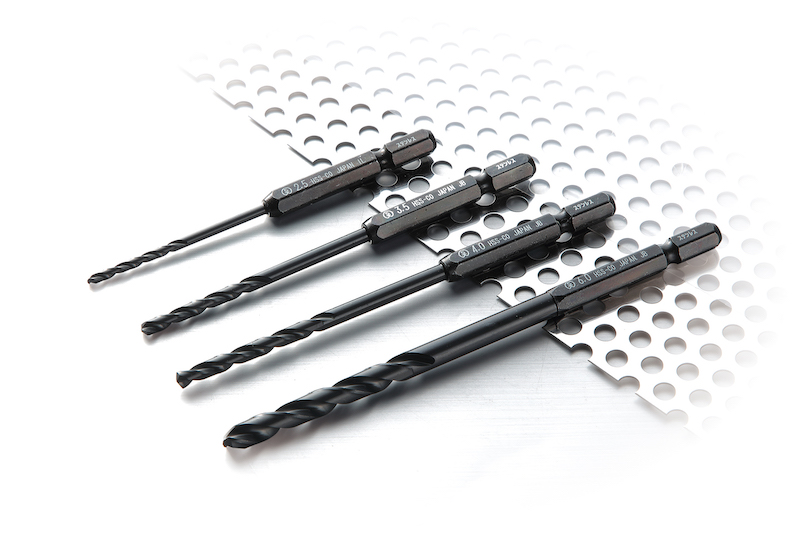

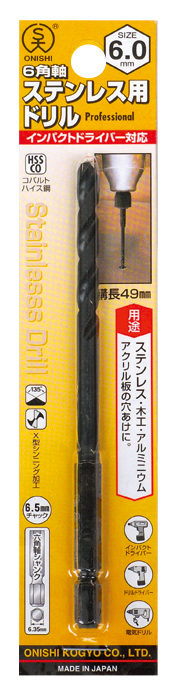

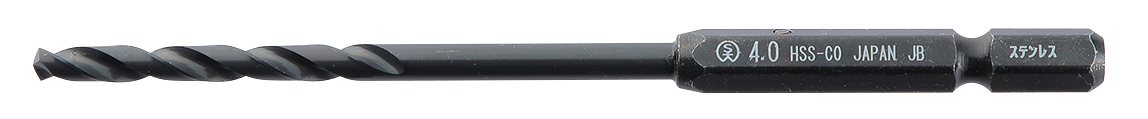

NO.26 Hex Shank Stainless Steel Drill Bits

product_images
product_images
product_images

Hover your mouse over the image to enlarge

product_small_images
product_small_images
product_small_images

USE

Drilling on iron or stainless steel.

FEATURE

・Design Hex shank for quick change of impact drill.
・Using Cobalt High-Speed Steel Drill for grinding resistance of drills.
・Design short flute length for improving accuracy, efficiency and rigidity.
・Design X style thinning at the tip for great chip discharge at the drill tip and prolong battery life.
・the shank and drill body has adhered completely
・Inserted the pin to prevent rotation or slipping out.
・Design 135-degree tip angle for drilling on stainless steel.

SIZE

Part Number Size Inch Actual Full Ditch Chuck JAN Price Total
026-020 2.0㎜ - - 85㎜ 20㎜ 6.35㎜ 4957934240209 ¥1,020 ¥1,122
026-021 2.1㎜ - - 85㎜ 20㎜ 6.35㎜ 4957934240216 ¥1,140 ¥1,254
026-022 2.2㎜ - - 88㎜ 23㎜ 6.35㎜ 4957934240223 ¥1,140 ¥1,254
026-023 2.3㎜ - - 88㎜ 23㎜ 6.35㎜ 4957934240230 ¥1,110 ¥1,221
026-024 2.4㎜ - - 91㎜ 24㎜ 6.35㎜ 4957934240247 ¥1,140 ¥1,254
026-025 2.5㎜ - - 91㎜ 24㎜ 6.35㎜ 4957934240254 ¥1,020 ¥1,122
026-026 2.6㎜ - - 94㎜ 26㎜ 6.35㎜ 4957934240261 ¥1,110 ¥1,221
026-027 2.7㎜ - - 94㎜ 26㎜ 6.35㎜ 4957934240278 ¥1,110 ¥1,221
026-028 2.8㎜ - - 97㎜ 27㎜ 6.35㎜ 4957934240285 ¥1,090 ¥1,199
026-029 2.9㎜ - - 98㎜ 30㎜ 6.35㎜ 4957934240292 ¥1,110 ¥1,221
026-030 3.0㎜ - - 98㎜ 30㎜ 6.35㎜ 4957934240308 ¥1,020 ¥1,122
026-031 3.1㎜ - - 98㎜ 30㎜ 6.35㎜ 4957934240315 ¥1,230 ¥1,353
026-032 3.2㎜ - - 98㎜ 30㎜ 6.35㎜ 4957934240322 ¥1,110 ¥1,221
026-033 3.3㎜ - - 100㎜ 32㎜ 6.35㎜ 4957934240339 ¥1,110 ¥1,221
026-034 3.4㎜ - - 100㎜ 32㎜ 6.35㎜ 4957934240346 ¥1,190 ¥1,309
026-035 3.5㎜ - - 100㎜ 32㎜ 6.35㎜ 4957934240353 ¥1,110 ¥1,221
026-036 3.6㎜ - - 103㎜ 34㎜ 6.35㎜ 4957934240360 ¥1,270 ¥1,397
026-037 3.7㎜ - - 103㎜ 34㎜ 6.35㎜ 4957934240377 ¥1,270 ¥1,397
026-038 3.8㎜ - - 103㎜ 34㎜ 6.35㎜ 4957934240384 ¥1,190 ¥1,309
026-039 3.9㎜ - - 106㎜ 36㎜ 6.35㎜ 4957934240391 ¥1,290 ¥1,419
026-040 4.0㎜ - - 108㎜ 38㎜ 6.35㎜ 4957934240407 ¥1,190 ¥1,309
026-041 4.1㎜ - - 108㎜ 38㎜ 6.35㎜ 4957934240414 ¥1,500 ¥1,650
026-042 4.2㎜ - - 108㎜ 38㎜ 6.35㎜ 4957934240421 ¥1,400 ¥1,540
026-043 4.3㎜ - - 108㎜ 38㎜ 6.35㎜ 4957934240438 ¥1,500 ¥1,650
026-044 4.4㎜ - - 111㎜ 39㎜ 6.35㎜ 4957934240445 ¥1,500 ¥1,650
026-045 4,5㎜ - - 111㎜ 39㎜ 6.35㎜ 4957934240452 ¥1,400 ¥1,540
026-046 4.6㎜ - - 111㎜ 39㎜ 6.35㎜ 4957934240469 ¥1,640 ¥1,804
026-047 4.7㎜ - - 114㎜ 41㎜ 6.35㎜ 4957934240476 ¥1,640 ¥1,804
026-048 4.8㎜ - - 114㎜ 41㎜ 6.35㎜ 4957934240483 ¥1,640 ¥1,804
026-049 4.9㎜ - - 117㎜ 43㎜ 6.35㎜ 4957934240490 ¥1,690 ¥1,859
026-050 5.0㎜ - - 117㎜ 43㎜ 6.35㎜ 4957934240506 1,530 ¥1,683
026-052 5.2㎜ - - 120㎜ 45㎜ 6.35㎜ 4957934240520 ¥1,790 ¥1,969
026-055 5.5㎜ - - 120㎜ 45㎜ 6.35㎜ 4957934240551 ¥1,790 ¥1,969
026-060 6.0㎜ - - 127㎜ 49㎜ 6.35㎜ 4957934240605 ¥2,030 ¥2,233
026-065 6.5㎜ - - 127㎜ 49㎜ 6.35㎜ 4957934240650 ¥2,320 ¥2,552
  • 026-020

    ¥¥1,020(¥1,122)

    • Size:

      2.0㎜

    • Actual:

      -

    • Full:

      85㎜

    • Ditch:

      20㎜

    • Chuck:

      6.35㎜

    • JAN:

      4957934240209

  • 026-021

    ¥¥1,140(¥1,254)

    • Size:

      2.1㎜

    • Actual:

      -

    • Full:

      85㎜

    • Ditch:

      20㎜

    • Chuck:

      6.35㎜

    • JAN:

      4957934240216

  • 026-022

    ¥¥1,140(¥1,254)

    • Size:

      2.2㎜

    • Actual:

      -

    • Full:

      88㎜

    • Ditch:

      23㎜

    • Chuck:

      6.35㎜

    • JAN:

      4957934240223

  • 026-023

    ¥¥1,110(¥1,221)

    • Size:

      2.3㎜

    • Actual:

      -

    • Full:

      88㎜

    • Ditch:

      23㎜

    • Chuck:

      6.35㎜

    • JAN:

      4957934240230

  • 026-024

    ¥¥1,140(¥1,254)

    • Size:

      2.4㎜

    • Actual:

      -

    • Full:

      91㎜

    • Ditch:

      24㎜

    • Chuck:

      6.35㎜

    • JAN:

      4957934240247

  • 026-025

    ¥¥1,020(¥1,122)

    • Size:

      2.5㎜

    • Actual:

      -

    • Full:

      91㎜

    • Ditch:

      24㎜

    • Chuck:

      6.35㎜

    • JAN:

      4957934240254

  • 026-026

    ¥¥1,110(¥1,221)

    • Size:

      2.6㎜

    • Actual:

      -

    • Full:

      94㎜

    • Ditch:

      26㎜

    • Chuck:

      6.35㎜

    • JAN:

      4957934240261

  • 026-027

    ¥¥1,110(¥1,221)

    • Size:

      2.7㎜

    • Actual:

      -

    • Full:

      94㎜

    • Ditch:

      26㎜

    • Chuck:

      6.35㎜

    • JAN:

      4957934240278

  • 026-028

    ¥¥1,090(¥1,199)

    • Size:

      2.8㎜

    • Actual:

      -

    • Full:

      97㎜

    • Ditch:

      27㎜

    • Chuck:

      6.35㎜

    • JAN:

      4957934240285

  • 026-029

    ¥¥1,110(¥1,221)

    • Size:

      2.9㎜

    • Actual:

      -

    • Full:

      98㎜

    • Ditch:

      30㎜

    • Chuck:

      6.35㎜

    • JAN:

      4957934240292

  • 026-030

    ¥¥1,020(¥1,122)

    • Size:

      3.0㎜

    • Actual:

      -

    • Full:

      98㎜

    • Ditch:

      30㎜

    • Chuck:

      6.35㎜

    • JAN:

      4957934240308

  • 026-031

    ¥¥1,230(¥1,353)

    • Size:

      3.1㎜

    • Actual:

      -

    • Full:

      98㎜

    • Ditch:

      30㎜

    • Chuck:

      6.35㎜

    • JAN:

      4957934240315

  • 026-032

    ¥¥1,110(¥1,221)

    • Size:

      3.2㎜

    • Actual:

      -

    • Full:

      98㎜

    • Ditch:

      30㎜

    • Chuck:

      6.35㎜

    • JAN:

      4957934240322

  • 026-033

    ¥¥1,110(¥1,221)

    • Size:

      3.3㎜

    • Actual:

      -

    • Full:

      100㎜

    • Ditch:

      32㎜

    • Chuck:

      6.35㎜

    • JAN:

      4957934240339

  • 026-034

    ¥¥1,190(¥1,309)

    • Size:

      3.4㎜

    • Actual:

      -

    • Full:

      100㎜

    • Ditch:

      32㎜

    • Chuck:

      6.35㎜

    • JAN:

      4957934240346

  • 026-035

    ¥¥1,110(¥1,221)

    • Size:

      3.5㎜

    • Actual:

      -

    • Full:

      100㎜

    • Ditch:

      32㎜

    • Chuck:

      6.35㎜

    • JAN:

      4957934240353

  • 026-036

    ¥¥1,270(¥1,397)

    • Size:

      3.6㎜

    • Actual:

      -

    • Full:

      103㎜

    • Ditch:

      34㎜

    • Chuck:

      6.35㎜

    • JAN:

      4957934240360

  • 026-037

    ¥¥1,270(¥1,397)

    • Size:

      3.7㎜

    • Actual:

      -

    • Full:

      103㎜

    • Ditch:

      34㎜

    • Chuck:

      6.35㎜

    • JAN:

      4957934240377

  • 026-038

    ¥¥1,190(¥1,309)

    • Size:

      3.8㎜

    • Actual:

      -

    • Full:

      103㎜

    • Ditch:

      34㎜

    • Chuck:

      6.35㎜

    • JAN:

      4957934240384

  • 026-039

    ¥¥1,290( ¥1,419)

    • Size:

      3.9㎜

    • Actual:

      -

    • Full:

      106㎜

    • Ditch:

      36㎜

    • Chuck:

      6.35㎜

    • JAN:

      4957934240391

  • 026-040

    ¥¥1,190(¥1,309)

    • Size:

      4.0㎜

    • Actual:

      -

    • Full:

      108㎜

    • Ditch:

      38㎜

    • Chuck:

      6.35㎜

    • JAN:

      4957934240407

  • 026-041

    ¥¥1,500(¥1,650)

    • Size:

      4.1㎜

    • Actual:

      -

    • Full:

      108㎜

    • Ditch:

      38㎜

    • Chuck:

      6.35㎜

    • JAN:

      4957934240414

  • 026-042

    ¥¥1,400(¥1,540)

    • Size:

      4.2㎜

    • Actual:

      -

    • Full:

      108㎜

    • Ditch:

      38㎜

    • Chuck:

      6.35㎜

    • JAN:

      4957934240421

  • 026-043

    ¥¥1,500(¥1,650)

    • Size:

      4.3㎜

    • Actual:

      -

    • Full:

      108㎜

    • Ditch:

      38㎜

    • Chuck:

      6.35㎜

    • JAN:

      4957934240438

  • 026-044

    ¥¥1,500(¥1,650)

    • Size:

      4.4㎜

    • Actual:

      -

    • Full:

      111㎜

    • Ditch:

      39㎜

    • Chuck:

      6.35㎜

    • JAN:

      4957934240445

  • 026-045

    ¥¥1,400(¥1,540)

    • Size:

      4,5㎜

    • Actual:

      -

    • Full:

      111㎜

    • Ditch:

      39㎜

    • Chuck:

      6.35㎜

    • JAN:

      4957934240452

  • 026-046

    ¥¥1,640(¥1,804)

    • Size:

      4.6㎜

    • Actual:

      -

    • Full:

      111㎜

    • Ditch:

      39㎜

    • Chuck:

      6.35㎜

    • JAN:

      4957934240469

  • 026-047

    ¥¥1,640(¥1,804)

    • Size:

      4.7㎜

    • Actual:

    • Full:

      114㎜

    • Ditch:

      41㎜

    • Chuck:

      6.35㎜

    • JAN:

      4957934240476

  • 026-048

    ¥¥1,640(¥1,804)

    • Size:

      4.8㎜

    • Actual:

      -

    • Full:

      114㎜

    • Ditch:

      41㎜

    • Chuck:

      6.35㎜

    • JAN:

      4957934240483

  • 026-049

    ¥¥1,690(¥1,859)

    • Size:

      4.9㎜

    • Actual:

      -

    • Full:

      117㎜

    • Ditch:

      43㎜

    • Chuck:

      6.35㎜

    • JAN:

      4957934240490

  • 026-050

    ¥1,530(¥1,683)

    • Size:

      5.0㎜

    • Actual:

      -

    • Full:

      117㎜

    • Ditch:

      43㎜

    • Chuck:

      6.35㎜

    • JAN:

      4957934240506

  • 026-052

    ¥¥1,790(¥1,969)

    • Size:

      5.2㎜

    • Actual:

      -

    • Full:

      120㎜

    • Ditch:

      45㎜

    • Chuck:

      6.35㎜

    • JAN:

      4957934240520

  • 026-055

    ¥¥1,790(¥1,969)

    • Size:

      5.5㎜

    • Actual:

      -

    • Full:

      120㎜

    • Ditch:

      45㎜

    • Chuck:

      6.35㎜

    • JAN:

      4957934240551

  • 026-060

    ¥¥2,030(¥2,233)

    • Size:

      6.0㎜

    • Actual:

      -

    • Full:

      127㎜

    • Ditch:

      49㎜

    • Chuck:

      6.35㎜

    • JAN:

      4957934240605

  • 026-065

    ¥¥2,320(¥2,552)

    • Size:

      6.5㎜

    • Actual:

      -

    • Full:

      127㎜

    • Ditch:

      49㎜

    • Chuck:

      6.35㎜

    • JAN:

      4957934240650

RELATED ITEM

No.26 Hex Shank Stainless Steel Drill Bits 3pcs set

Use

Drilling on iron or stainless steel.

Features

・Design Hex shank for quick change of impact drill.
・Using Cobalt High-Speed Steel Drill for grinding resistance of drills.
・Design short flute length for improving accuracy, efficiency and rigidity.
・Design X style thinning at the tip for great chip discharge at the drill tip and prolong battery life.
・The shank and drill body has adhered completely.
・Inserted the pin to prevent rotation or slipping out.
・Design 135-degree tip angle for drilling on stainless steel.
