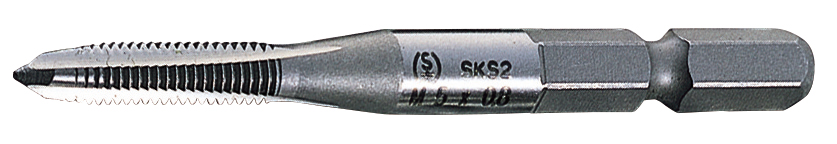

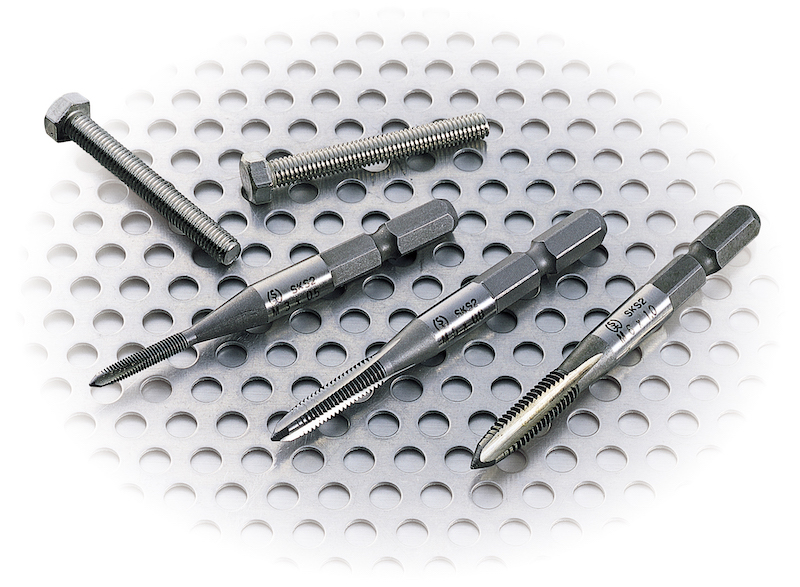

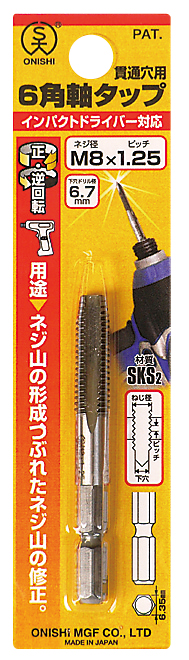

NO.28 Hex Shank Taps (Through hole)

ページ内メニュー

product_images
product_images
product_images

Hover your mouse over the image to enlarge

product_small_images
product_small_images
product_small_images

USE

Making screw threads and fixing broken screw threads.

FEATURE

・Allows you to process screw hole processing smoothly with fixable in forward and reverse rotation such as impact driver.
・Chips inside the work material are discharge forward.

Material:
Alloy tool Steel - SKS

Precautions for Use
Please do not use any other except electric tool with forward-reverse rotation.
Please be sure to use tapping oil.

SIZE

Part Number Size
(mm)
Inch Actual
(mm)
Full
(mm)
Ditch
(mm)
Chuck
(mm)
JAN Price Total
028-M305 M3x0.5 - - 70 20 6.35 4957934370012 880 968
028-M407 M4x0.7 - - 70 20 6.35 4957934370029 880 968
028-M508 M5x0.8 - - 70 20 6.35 4957934370036 920 1,012
028-M610 M6x1.0 - - 70 20 6.35 4957934370043 980 1,078
028-M8125 M8x1.25 - - 70 20 6.35 4957934370050 1,290 1,419
  • 028-M305

    880(968)

    • Size(mm):

      M3x0.5

    • インチ(mm):

      -

    • Actual(mm):

      -

    • Full(mm):

      70

    • Ditch(mm):

      20

    • Chuck(mm):

      6.35

    • JAN:

      4957934370012

  • 028-M407

    880(968)

    • Size(mm):

      M4x0.7

    • インチ(mm):

      -

    • Actual(mm):

      -

    • Full(mm):

      70

    • Ditch(mm):

      20

    • Chuck(mm):

      6.35

    • JAN:

      4957934370029

  • 028-M508

    920(1,012)

    • Size(mm):

      M5x0.8

    • インチ(mm):

      -

    • Actual(mm):

      -

    • Full(mm):

      70

    • Ditch(mm):

      20

    • Chuck(mm):

      6.35

    • JAN:

      4957934370036

  • 028-M610

    980(1,078)

    • Size(mm):

      M6x1.0

    • インチ(mm):

    • Actual(mm):

    • Full(mm):

      70

    • Ditch(mm):

      20

    • Chuck(mm):

      6.35

    • JAN:

      4957934370043

  • 028-M8125

    1,290(1,419)

    • Size(mm):

      M8x1.25

    • インチ(mm):

    • Actual(mm):

    • Full(mm):

      70

    • Ditch(mm):

      20

    • Chuck(mm):

      6.35

    • JAN:

      4957934370050

RELATED ITEM

No.28 Hex Shank Taps (Through hole) Set

Use

Making screw threads and fixing broken screw threads.

Features

・Allows you to process screw hole processing smoothly with fixable in forward and reverse rotation such as impact driver.
・Chips inside the work material are discharge forward.

Material:
Alloy tool Steel - SKS

Precautions for Use
Please do not use any other except electric tool with forward-reverse rotation.
Please be sure to use tapping oil.

No.28 Hex Shank Taps (Through hole)・Drill bits for pre-hole

Use

Making screw threads and fixing broken screw threads.

Features

・Allows you to process screw hole processing smoothly with fixable in forward and reverse rotation such as impact driver.
・Chips inside the work material are discharge forward.

Material:
Alloy tool Steel - SKS

Precautions for Use
Please do not use any other except electric tool with forward-reverse rotation.
Please be sure to use tapping oil.
