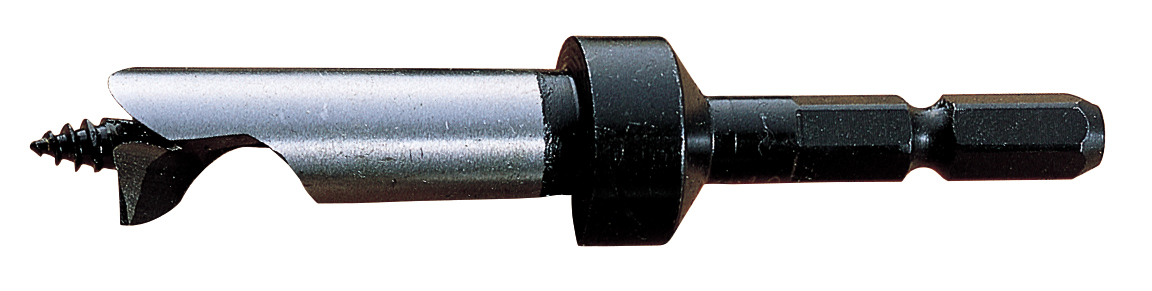

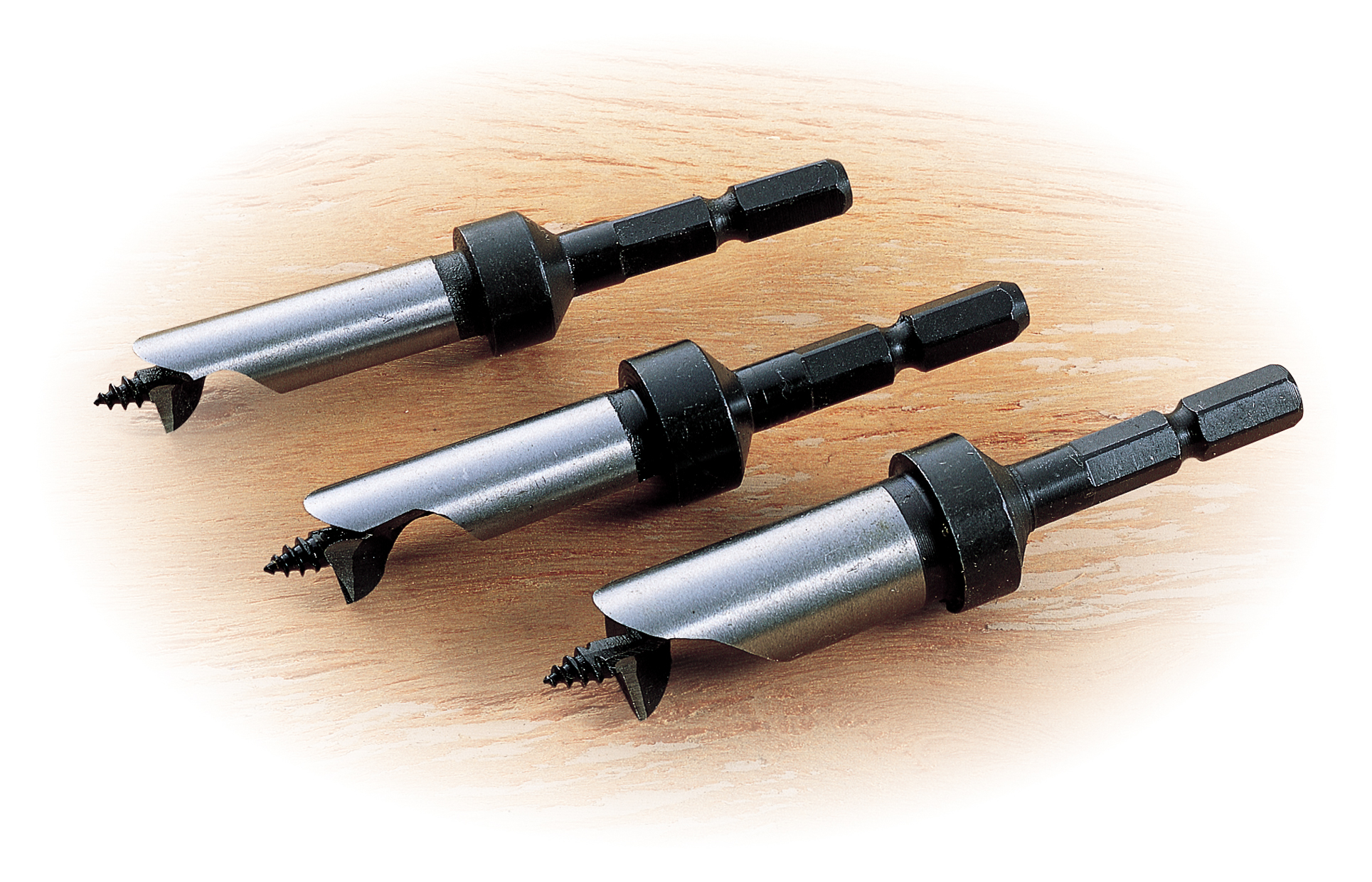

NO.18 Plywood Auger Bits Stopper Type (Centring work)

Hover your mouse over the image to enlarge

USE

Drilling in plywood with centring work.

FEATURE

・Most suitable length for penetrating two-ply 12mm/15mm wood board.
・Suitable for fixed-depth holes
・The stopper allows stopping the advance of the drill and extra rotation shortly, thus the battery lasts longer and more holes can be drilled with one charge.
・Design a groove shape of more than half a circle for smooth rotation, save battery by easy removal from hole without wobbling.

SIZE

Part Number	Size (mm)	Inch	Actual (mm)	Full (mm)	Ditch (mm)	Chuck (mm)	JAN	Price	Total
018-085	8.5	-	-	83	34	6.35	4957934170858	￥1,190	￥1,309
018-090	9.0	-	-	83	34	6.35	4957934170902	￥1,190	￥1,309
018-100	10.0	3/8	-	83	34	6.35	4957934171008	￥1,190	￥1,309
018-105	10.5	-	-	83	34	6.35	4957934171053	￥1,190	￥1,309
018-120	12.0	-	-	83	34	6.35	4957934171206	￥1,190	￥1,309
018-150	15.0	-	-	83	34	6.35	4957934171503	￥1,490	￥1,639

018-085

￥1,190(￥1,309)
- Size(mm):

  8.5
- インチ(mm):

  -
- Actual(mm):

  -
- Full(mm):

  83
- Ditch(mm):

  34
- Chuck(mm):

  6.35
- JAN:

  4957934170858
018-090

￥1,190(￥1,309)
- Size(mm):

  9.0
- インチ(mm):

  -
- Actual(mm):

  -
- Full(mm):

  83
- Ditch(mm):

  34
- Chuck(mm):

  6.35
- JAN:

  4957934170902
018-100

￥1,190(￥1,309)
- Size(mm):

  10.0
- インチ(mm):

  3/8
- Actual(mm):

  -
- Full(mm):

  83
- Ditch(mm):

  34
- Chuck(mm):

  6.35
- JAN:

  4957934171008
018-105

￥1,190(￥1,309)
- Size(mm):

  10.5
- インチ(mm):

  -
- Actual(mm):

  -
- Full(mm):

  83
- Ditch(mm):

  34
- Chuck(mm):

  6.35
- JAN:

  4957934171053
018-120

￥1,190(￥1,309)
- Size(mm):

  12.0
- インチ(mm):

  -
- Actual(mm):

  -
- Full(mm):

  83
- Ditch(mm):

  34
- Chuck(mm):

  6.35
- JAN:

  4957934171206
018-150

￥1,490(￥1,639)
- Size(mm):

  15.0
- インチ(mm):

  -
- Actual(mm):

  -
- Full(mm):

  83
- Ditch(mm):

  34
- Chuck(mm):

  6.35
- JAN:

  4957934171503
